Productivity UP
Newly added Draft mode that reaches the maximum productivity of 27.3m2/h
Printing speed (m2/h)
| Print mode | 4 colors CMYK |
6 colors CMYKWhVa |
|
|---|---|---|---|
| Single layer | Single layer | 2 layers | |
| Draft | 27.3 | 13.2 | 7.1 |
| High Speed | 15.8 | 8.8 | 4.7 |
| Production | 13.0 | 6.8 | 3.4 |
| Quality | 8.9 | 4.4 | 2.0 |
| High Quality | 6.6 | 3.4 | 1.7 |
Layer printing
– greatly expanded application compatibility

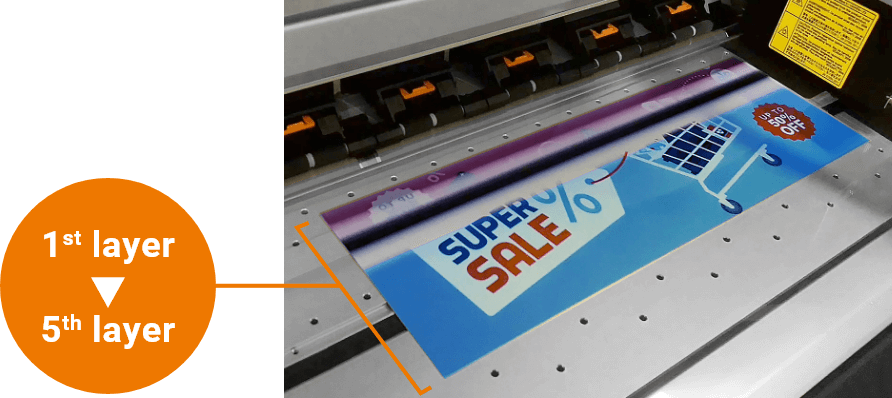

5 layersPrint in one pass without pulling back
Print different designs on front and back
2·3 layersAchieve a variety of printing finishes by using
white and varnish inks
Print window graphics and interior illuminated signs
4 layersPrint backlit signs that change design with lights turned on or off
＊Images for illustrative purposes.
US61 ink, designed with health risks in mind
Follows strict EU chemical substance regulations
Safe composition that is free of substances classified as CMR Category 1(1A,1B) or SVHC (Substances of Very High Concern)
Ink replacement takes less effort
Can be replaced simply by changing the ink bag with less risk of touching the ink directly with your hands
Good flexibility and abrasion resistance
Can be printed on flexible materials used as soft signage and window graphics
Low waste and long-term use
Expiration date 12 months post manufacturing
Ink capacity of 800ml
UL
GREENGUARD
Gold
Certification
Ease-of-use features
Automatic Bi-D adjustment/
automatic media feed adjustment
Automates adjustments for each media type,
reducing the burden on the operator.
Automatic media feed adjustment
“FEED MASTER”
By printing a print pattern and reading it with a
sensor, paper feed correction can be automated.
Media roll balance management
Manages the remaining media with barcodes, enabling efficient media consumption and usage.
One-touch print head height adjustment
Can be switched between 3 levels
Low: 1.5mm, Middle: 2.0mm, High: 2.5mm
Take-up system
＊Optional
Maximum 30kg, supports printer linked operations.
Automatic nozzle checking unit and
Nozzle selection function
Safety functions that do not stop the printing process, reducing downtime.
Compatible with Genuine RIP software VerteLith
Genuine RIP Software that Achieves High Image Quality and Optimized Workflow Efficiency
Layered printing function
Print up to 5 layers in one pass
Depending on the number of layers and
Wh/Va finishes, different printing functions
have been optimized.
RIP preview function
Check your print data before outputting
Display the projected printed dots on your
monitor before printing in order to check
color output.
Nesting function
Use media effectively without waste
In addition to general placement functions,
VerteLith automatically places print jobs
minimizing free space and performs auto nesting.
Promotion movie

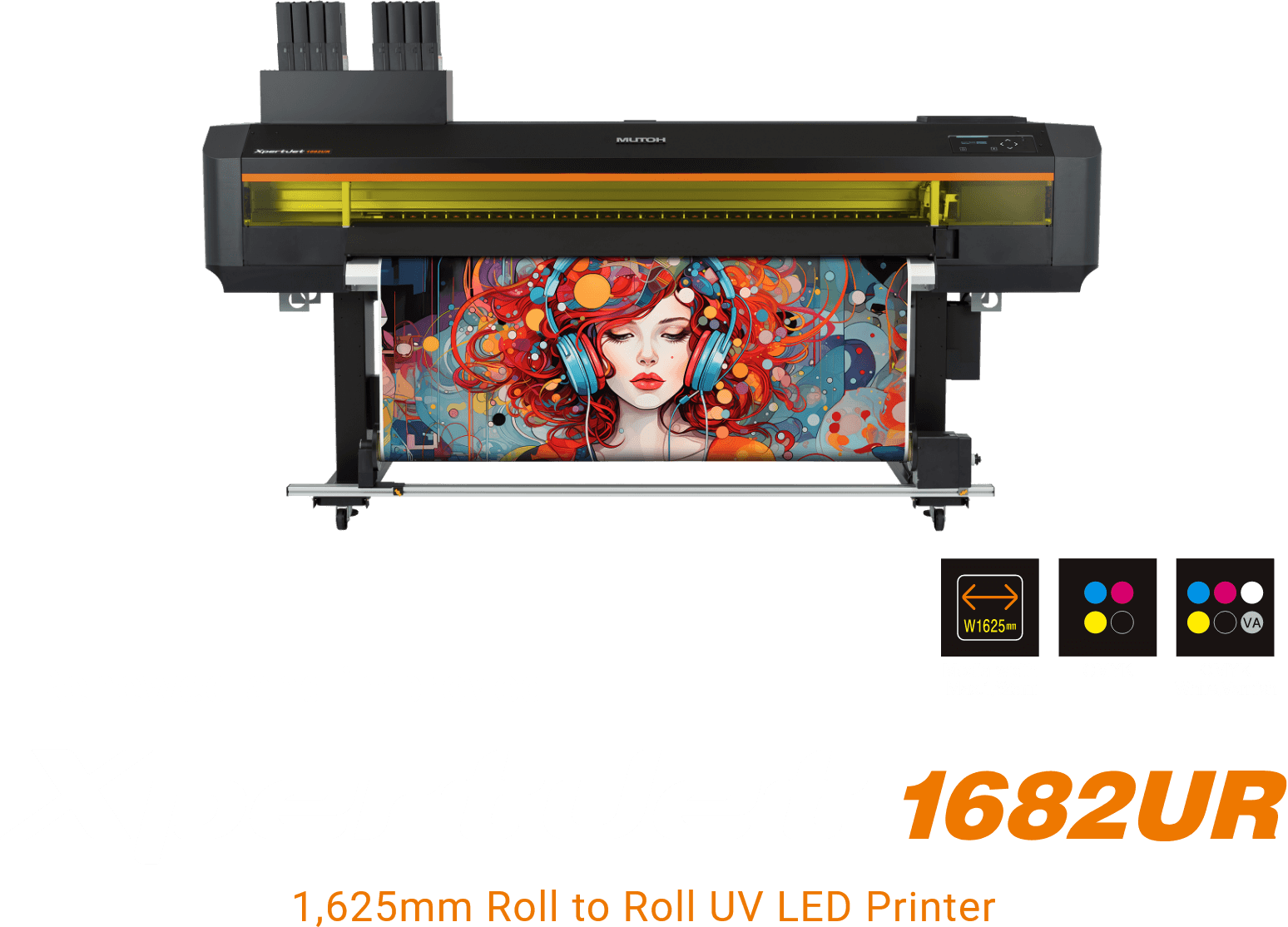

Discover XPJ-1682UR
